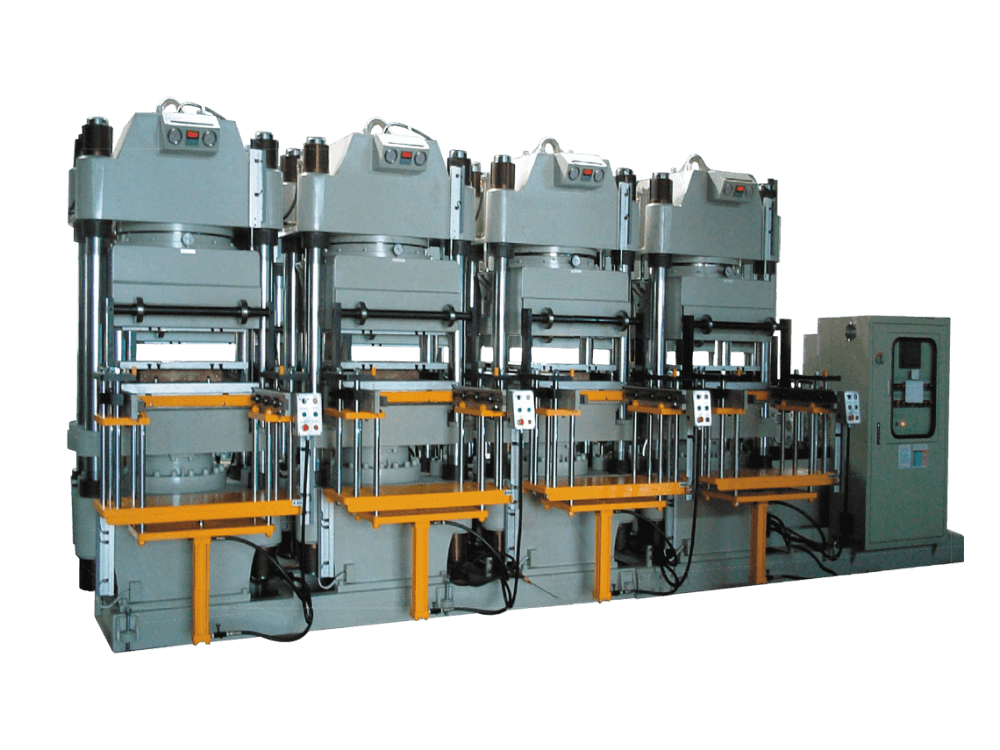

4 Stations 2RT Mold-Open Rubber/Silicone Vacuum Compression Molding Machine

VCC-F2/P1-2-6

Home / Our Products / Vacuum Molding Machine / VCC-F2

  • 4 Stations 2RT Mold-Open Rubber/Silicone Vacuum Compression Molding Machine

Features

  • This 4 station 2RT type of vacuum compression molding machine is multi-functional because it is suitable to be used for top opening double or triple molds.
  • Dual powers and individual oil system are adopted. Each oil system is designed respectively. It is the steady, quiet, and low frequency of malfunctions. Two shafts can be operated simultaneously.
  • Slow speed of mold calibration is provided to make the calibration safer and more accurate.
  • Molds can be precisely positioned. A 100% safety design for positioning is available to prevent molds from damage.
  • The speed to open/close the mold is adjustable. It is very accurate and reliable.

4 Stations 2RT Mold-Open Rubber/Silicone Vacuum Compression Molding Machine

  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of piston (mm) 250 300 350 400 450 560 700 800 960
Clamping force (ton) 100 150 200 250 300 500 800 1000 1500
Stroke (mm) 250 250 250 250 250 250 250 500 900
Heating platen (mm) UP400*400
DN420*450
UP450*450
DN480*500
UP503*508
DN554*640
UP600*600
DN650*740
UP600*600
DN650*740
UP600*600
DN650*740
UP850*850
DN910*940
UP1000*1000
DN1200*1300
UP1500*1500
DN1800*1900
UP700*700
DN740*800
UP700*700
DN740*800
Horse (hp) 7.5/10*1 10/15*1 10/15*1 10/15*1 10/10*2 15/15*2 20/20*2 20 30
