Injection volume control
High precision optical ruler is adopted for precisely calculating and controlling.
Design of rotary injection board
Special designs for loading/unloading functions are provided. It causes no dead material in the injection nozzle. It is easy to clean the material. It is durable and the quality is stable.
A high-tech infrared safety electronic sensor and automatic warning system are adopted to monitors the status of machine in order to provide extra protection to ensure the operation safety for operators.
Hydraulic system Design
Hydraulic system Designed by proportional pressure and flow ratio, which is steady, quiet and low frequency of malfunction. Two shafts can be operated simultaneously.

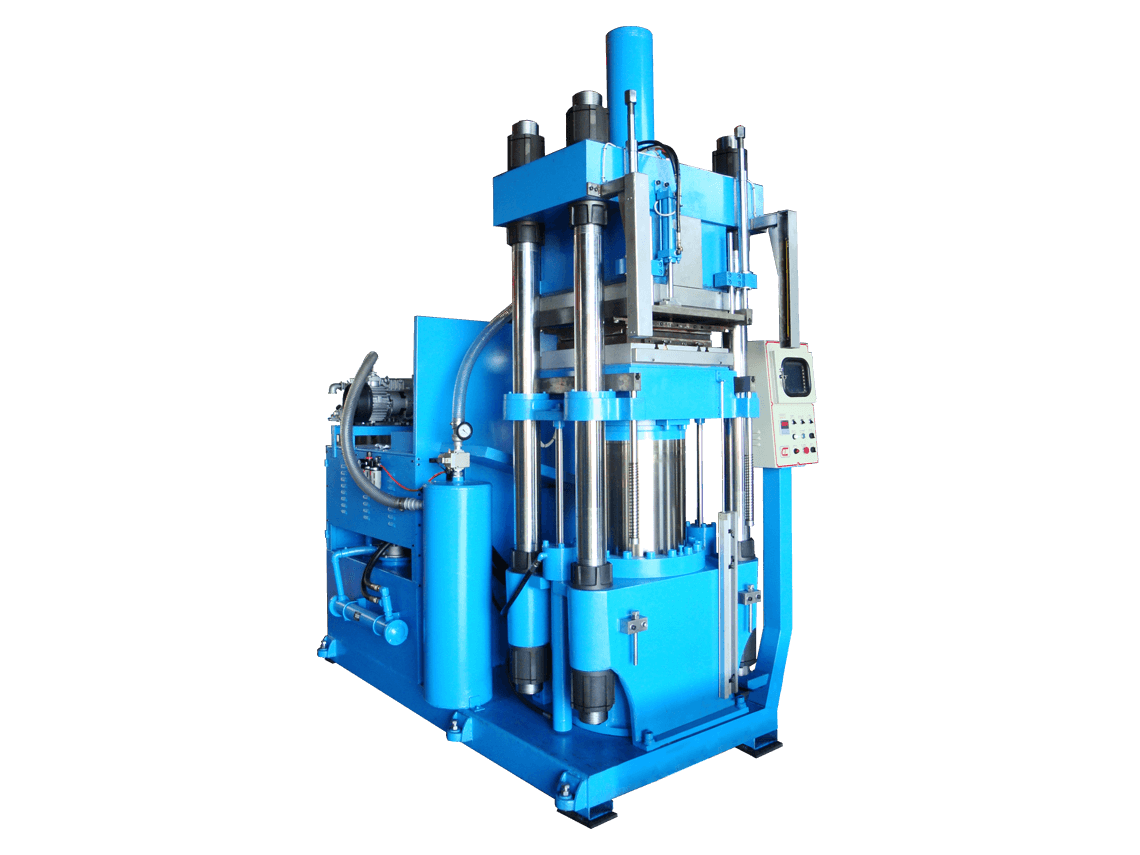

Manual Feeding Transfer Injection Molding Machine
|Diameter of piston (mm)||225||250||350||400||450||500||560||630||700||900|
|Clamping force (ton)||83||100||200||250||300||400||500||600||800||1300|
|Heating platen (mm)||350*450||400*400||
