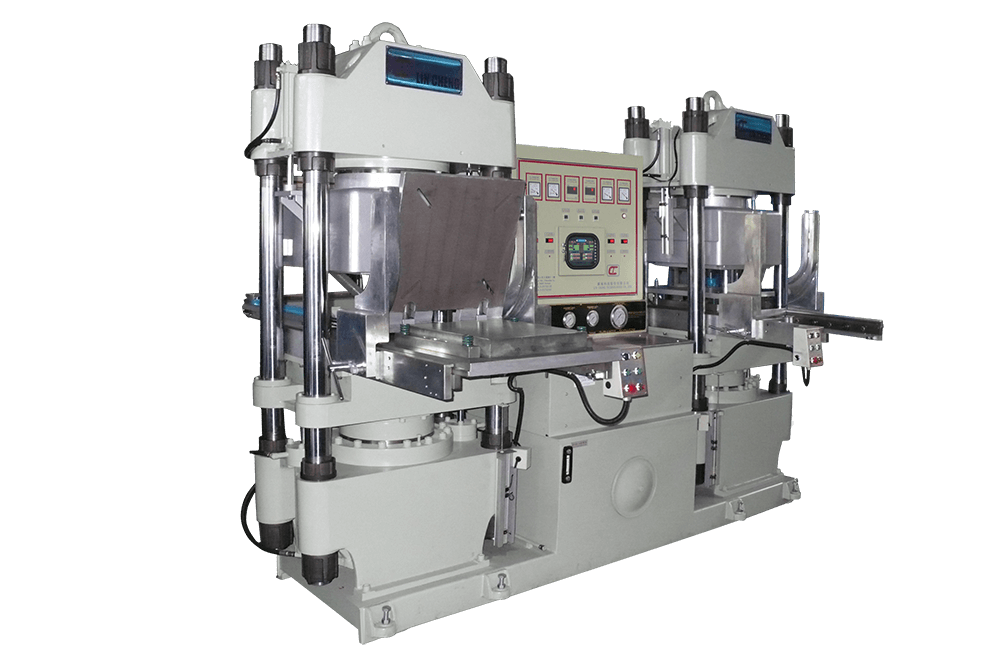

Patent Rail Mold-Open Rubber/Silicone Compression Vacuum Molding Machine

P1-2-2

  • Patent Rail Mold-Open Rubber/Silicone Compression Vacuum Molding Machine

Features

  • Vacuum capability

    It is capable of being high percentage of vacuum. An Average vacuum method is adopted to make products steady and to promote the quality and throughput.

  • Mold opening design

    A patent is granted for a new type rail mold opening. The opening angle is up to 90 degrees. It is very convenient for operation. Another feature of the new rail mold opening is that there is no need to remove the base of the rail mold opening while replacing molds. It promotes the work efficiency and safety.

  • Mold loading/unloading design

    Incorporate a special design into the mechanism of mold loading/unloading. It is durable, quiet, speedy and stable.

  • Oil system design

    Dual powers and individual oil system are adopted. Each oil system is designed respectively. It is steady, quiet and low frequency of malfunctions. Two shafts can be operated simultaneous.

  • Calibration

    Two speeds of mold calibration are provided for users to choose from, fast and slow. It makes the calibration safer and more accurate.


Patent Rail Mold-Open Rubber/Silicone Compression Vacuum Molding Machine
  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of piston (mm) 250 300 350 400 450 560 700 800 960
Clamping force (ton) 100 150 200 250 300 500 800 1000 1500
Stroke (mm) 250 250 250 250 250 250 250 500 900
Heating platen (mm) UP400*400
DN420*450
UP450*450
DN480*500
UP503*508
DN554*640
UP600*600
DN650*740
UP600*600
DN650*740
UP600*600
DN650*740
UP850*850
DN910*940
UP1000*1000
DN1200*1300
UP1500*1500
DN1800*1900
UP700*700
DN740*800
UP700*700
DN740*800
Horse (hp) 7.5/10*1 10/15*1 10/15*1 10/15*1 10/10*2 15/15*2 20/20*2 20 30
