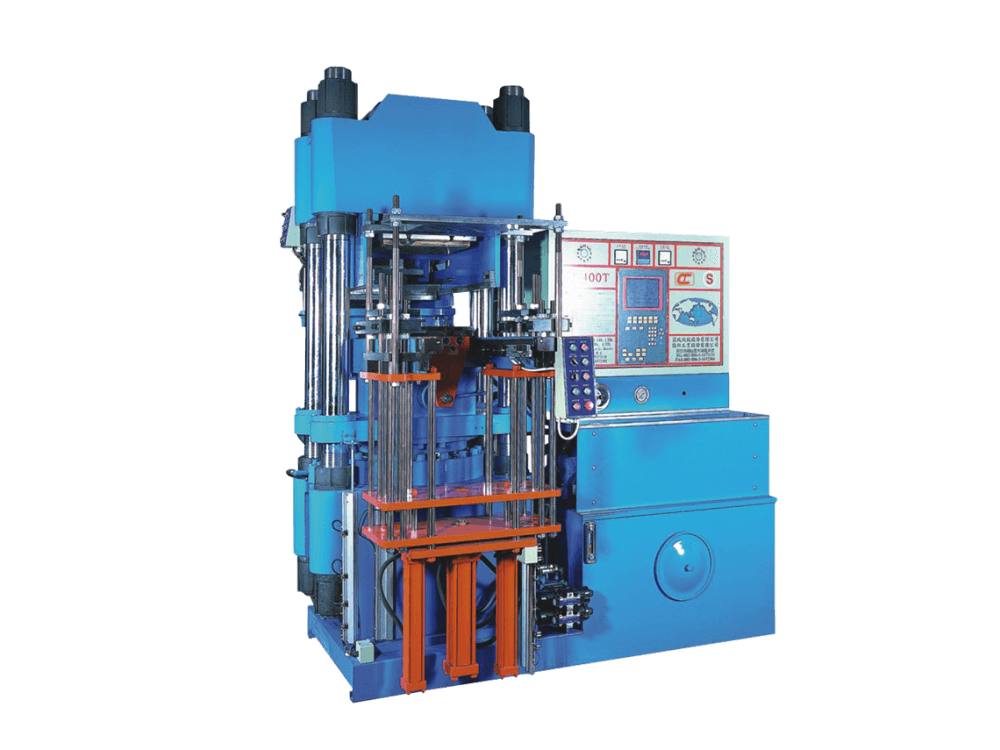

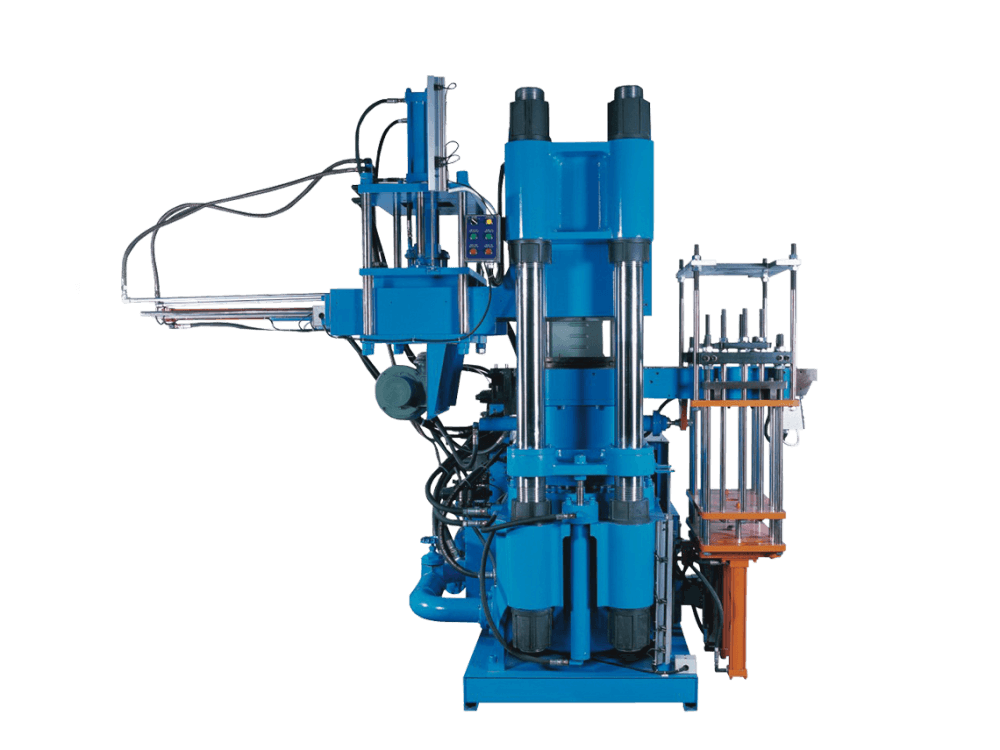

3RT Mold-Open Rubber/silicone Continuous Transfer Injection Molding Machine

P1-1-11

  • 3RT Mold-Open Rubber/silicone Continuous Transfer Injection Molding Machine
  • 3RT Mold-Open Rubber/silicone Continuous Transfer Injection Molding Machine

Features

  • The size of material box

    300x300mm

  • Special devices

    Fan cooling system, transfer injection system, siren for lacking materials.

  • Period o feeding materials

    To be taken at every 15 times of output.

  • Advantage

    By transferring injection of first raw material and molding of second vulcanized material to reach the purpose for “zero waste material” and “cost down.”

  • Suitable for

    Mini products, application for capacitor, golf ball and so on.

  • Patent register

    NO. 165936 in Taiwan.
    NO. 489526 in China.

3RT Mold-Open Rubber/silicone Continuous Transfer Injection Molding Machine
  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of cylinder (mm) 500
Force (ton) 400
Stroke (mm) 500
Working bench (mm) 435x500
Horse power (hp) 15
double shaft thermal electricity (kw) 12
Vacuum (kw) 3
Total power (kw) 21
Type of mold opening up/down-in/out- 2RT-3RT
