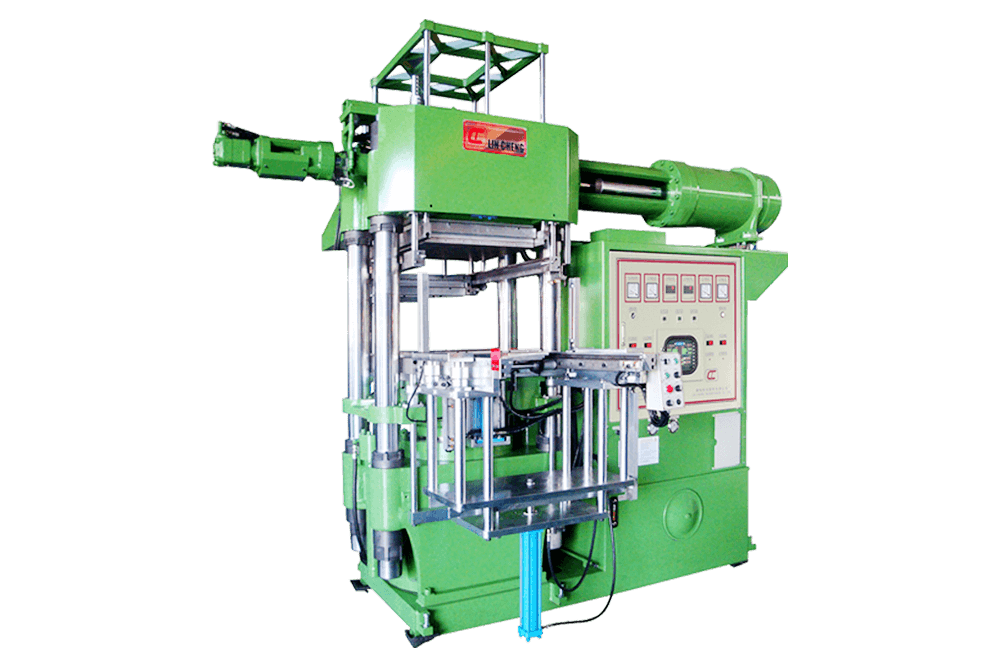

2RT Mold-open Non-runner-waste Rubber Injection Molding Machine
ITRH-S2/P1-1-5
Home / Our Products / Injection Molding Machine / ITRH-S2
2RT Mold-open Non-runner-waste Rubber Injection Molding Machine
Specifications
| Machine | Normal injection | Patent none runner-waste injection |
|---|---|---|
| 1 | Runner waste and take time pull out every cycle. | None runner waste. |
| 2 | Spur bushing effect looks. | Can be no spur bushing of products. |
| 3 | Runner design needs to allow for waste cost , therefore , have to sacrificed consistency of quality. | Can design the ideal runner as possible since none runner waste. |
| 4 | Only for normal injection purpose. | Can be used in both of normal injection and none runner-waste injection. |
| Machine | Compression with arranging materials | Patent none runner-waste injection |
|---|---|---|
| 1 | Needs manpower for cutting , weighting , and arranging materials. | No need to cutting , weighting , arranging. Save a lots manpower. |
| 2 | It takes long time for training greenborn . Also very easy to happen mistakes by manual operation. | A Greenborn can be put in production right away. No chance to have mistake from manpower. |
| 3 | A lot of flash. | Only few flash. |
| Summary | Make a breakthrough from traditional production. Overthrow the concept of some products can not use injection production. Slash a lot cost of material, manpower. Raising quality and yield of output. | |
| SPECIFICATION OF PATENT NONE RUNNER WASTE RUBBER INJECTION MACHINES | |||||||
|---|---|---|---|---|---|---|---|
| Diameter of piston (mm) | 700 | 800 | 900 | 960 | |||
| Clamping force (ton) | 800 | 1000 | 1200 | 1500 | |||
| Stroke (mm) | 700 | 700 | 900 | 1000 | |||
| Daylight (mm) | 1200 | 1200 | 1400 | 1700 | |||
| Heating platen (mm) |
Up1000*1000 Dn1000*1000 |
Up1100*1100 Dn1100*1100 |
Up1200*1200 Dn1200*1200 |
Up1500*1500 Dn1500*1500 |
|||
| Horse (hp) | 30 | 30 | 40 | 40 | |||
| Injection volume(c.c.) | 8000 | 12000 | 18000 | 24000 | |||
| Injection Pressure Max(kgf/cm²) | 1800 | 1800 | 1900 | 1900 | |||
