IRH-S2

Home / Our Products / Injection Molding Machine / IRH-S2

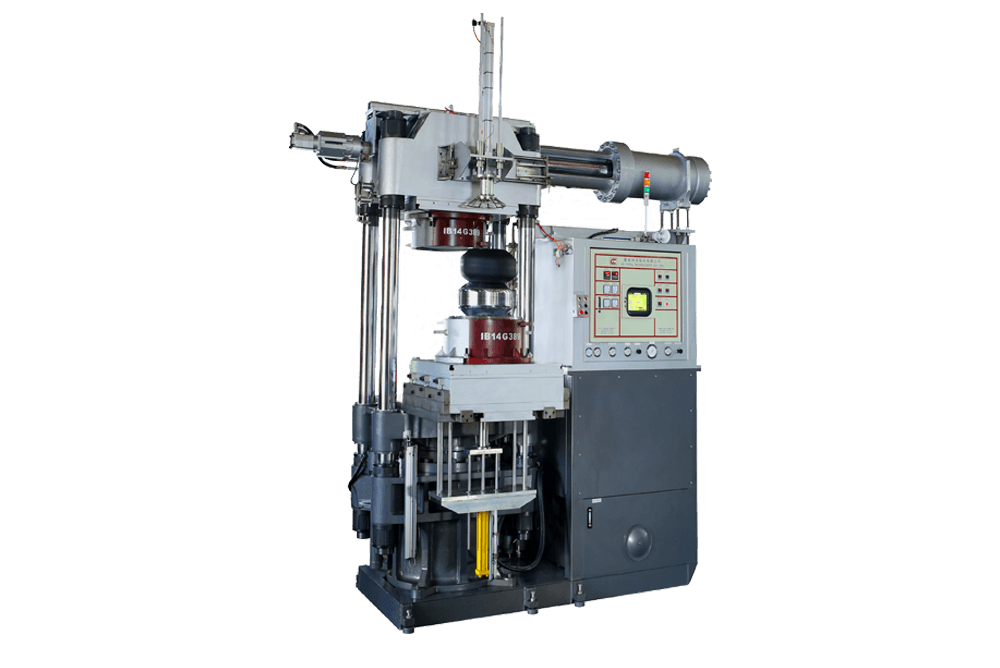

2RT Mold-Open Tire Bladder Rubber Injection Molding Machine

P1-1-6

  • 2RT Mold-Open Tire Bladder Rubber Injection Molding Machine

Features

  • Mold opening design

    The 2RT surpasses the traditional top opening mold that can be used for the double or triple molds with the design of the opening mold and pushing out the mold in the between. The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.

  • Material supply system

    A special design of two-stage material supply is adopted. It expels bubbles out of the raw material in the most effective way and there is no dead material.

  • Injection volume control

    A design incorporating a high precision optical ruler, made in Germany, is adopted. The injection volume can be calculated and controlled precisely.

  • Design of rotary injection board

    Special designs for loading/unloading functions are provided. It causes no dead material in the injection nozzle. It is easy to clean the material. It is durable and the quality is stable.

  • Safety design

    A high-tech infrared safety electronic eye, made in Japan, is available. An automatic warning system is available. To monitors the status of machine in order to provide extra protection to ensure the operation safety for operators.

  • Oil system design

    Dual powers and individual oil system are adopted. Each oil system is designed respectively. It is steady, quiet and low frequency of malfunctions. Two shafts can be operated simultaneous.

2RT Mold-Open Tire Bladder Rubber Injection Molding Machine
  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of piston (mm) 700 800 900 960
Clamping force (ton) 800 1000 1200 1500
Stroke (mm) 700 700 900 1000
Daylight (mm) 1200 1200 1400 1700
Heating platen (mm) Up1000*1000 Dn1000*1000 Up1100*1100 Dn1100*1100 Up1200*1200 Dn1200*1200 Up1500*1500 Dn1500*1500
Horse (hp) 30 30 40 40
Injection volume(c.c.) 8000 12000 18000 24000
