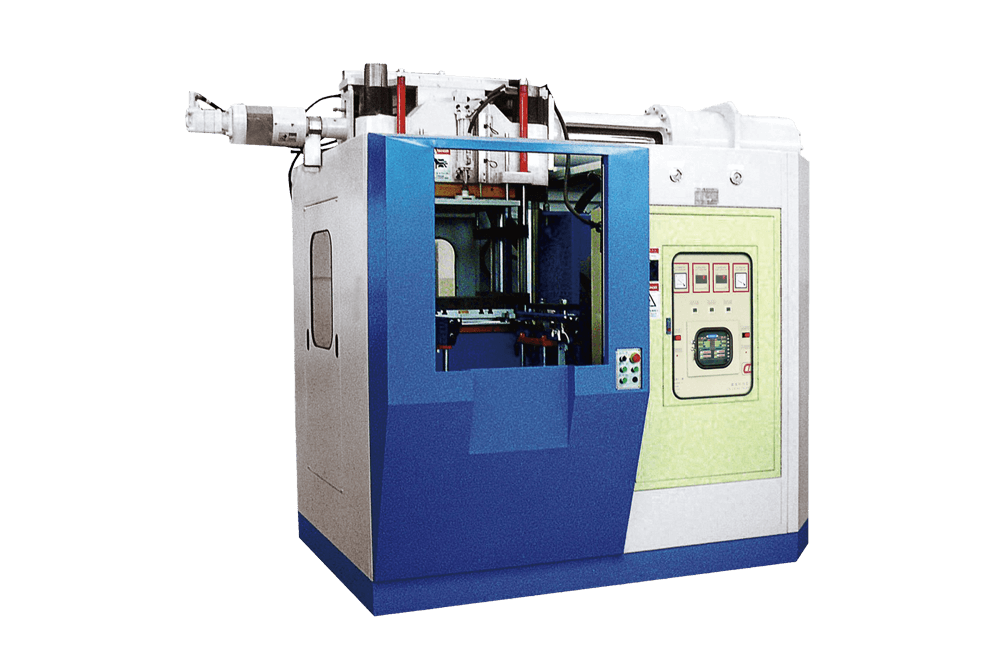

CE Certificate Rubber Injection Molding Machine

IRH(CE type)/P1-1-8

Home / Our Products / Injection Molding Machine / IRH(CE type)

  • CE Certificate Rubber Injection Molding Machine

Features

  • Injection volume control

    High precision optical ruler is adopted for precisely calculating and controlling.

  • Design of rotary injection board

    Special designs for loading/unloading functions are provided. It causes no dead material in the injection nozzle. It is easy to clean the material. It is durable and the quality is stable.

  • Safety design

    A high-tech infrared safety electronic sensor and automatic warning system are adopted to monitors the status of machine in order to provide extra protection to ensure the operation safety for operators.

  • Hydraulic system Design

    Hydraulic system Designed by proportional pressure and flow ratio, which is steady, quiet and low frequency of malfunction. Two shafts can be operated simultaneously.

CE Certificate Rubber Injection Molding Machine

  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of piston (mm) 225 250 350 400 450 500 560 630 700 900
Clamping force (ton) 83 100 200 250 300 400 500 600 800 1200
Stroke (mm) 400 400 500 600 600 600 600 600 700 900
Heating platen (mm) 350*450 400*400 503*508
525*560
560*560 580*600
700*700
700*700 800*900 1000*1100 1100*1100 1300*1300
Horse (hp) 10 10 15 20 20 20 20 30 40 50
Injection volume(c.c.) 500 500
900
1500 2000 3000
4000
5000 7900 10000 12000 18000
Injection Pressure Max(kgf/cm²) 1650 1650 1680 1700 1700 1750 1778 1800 1800 1900
