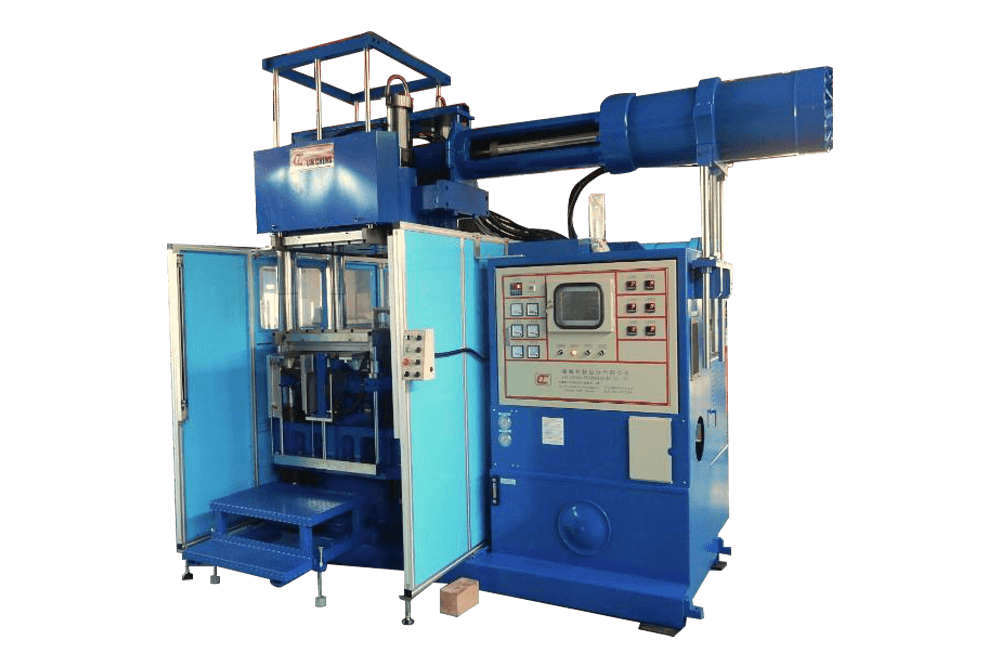

Rubber Injection Molding Machine

IRH-560 SEW/P1-1-12

Home / Our Products / Injection Molding Machine / IRH-560 SEW

  • Rubber Injection Molding Machine

Features

  • Injection volume control

    High precision optical ruler is adopted for precisely calculating and controlling.

  • Design of rotary injection board

    Special designs for loading/unloading functions are provided. It causes no dead material in the injection nozzle. It is easy to clean the material. It is durable and the quality is stable.

  • Safety design

    A high-tech infrared safety electronic sensor and automatic warning system are adopted to monitors the status of machine in order to provide extra protection to ensure the operation safety for operators.

  • Hydraulic system Design

    Hydraulic system Designed by proportional pressure and flow ratio, which is steady, quiet and low frequency of malfunction. Two shafts can be operated simultaneously.

Rubber Injection Molding Machine

  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Main Body (mm) Top Base: Nodular cast iron FCD500
Middle Base: Nodular cast iron FCD500
Bottom Base: Nodular cast iron FCD500
Force (ton) 500
Station 1
Platen UP、DOWN:L(R-L)700*W(F-B)800MM
Stroke 600mm
Injection Volume(c.c.) 5000 c.c.
Injection Pressure Max(kgf/cm²) 1778
Controller Mitsubishi PLC + FUJI 10.4”color touch screen
Power(HP) 25
Pump YUKEN
Oil Tank R-46 hydraulic oil 450Liter (with magnetic filter)
Weight(Kg) 12500
Size(mm) (L)4490 X (W)2940 X (H)3345
