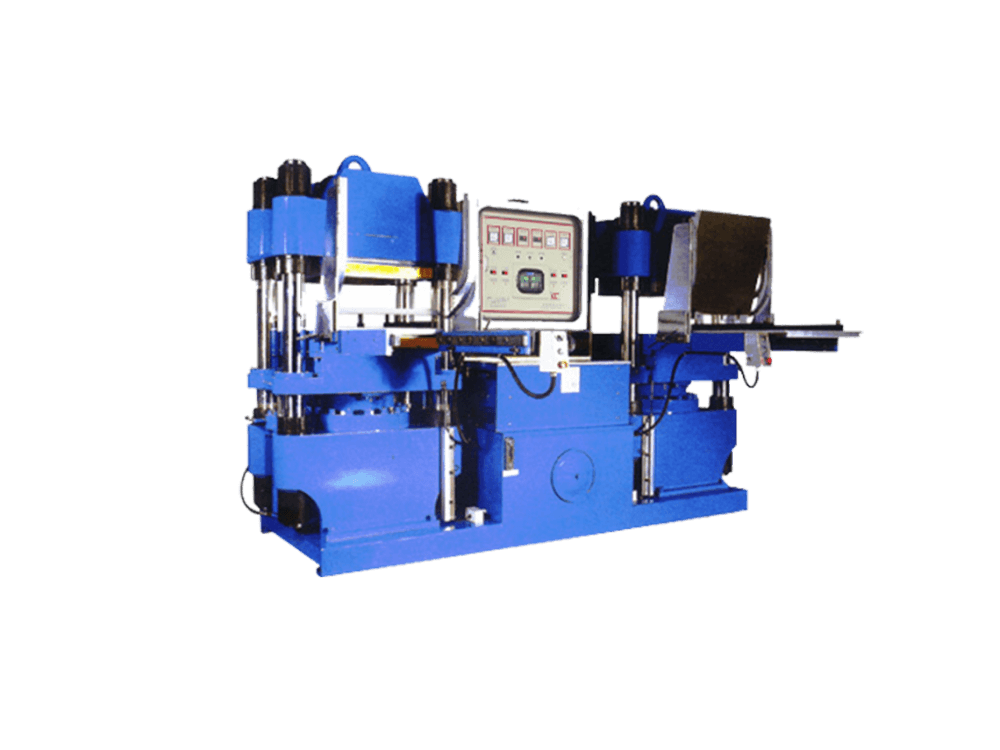

Patent Rail Mold-Open Rubber/Silicone Compression Molding Machine

HCC-DP/P1-3-2

Home / Our Products / Compression Molding Machine / HCC-DP

  • Patent Rail Mold-Open Rubber/Silicone Compression Molding Machine

Features

  • This type of machine is suitable to be used for double molds. It is capable of speedy productivity.
  • For the rail mold opening, the opening angle is up to 90 degrees. It is very convenient for operation.
  • High force adopts Dual powers and each oil system is designed respectively. It is steady, quiet and low frequency of malfuncions. Two shafts can be operated simultaneous.
  • Slow speed of mold calibration is provided to make the calibration safer and more accurate.

Patent Rail Mold-Open Rubber/Silicone Compression Molding Machine

  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of piston (mm) 250 300 350 400 450 560 700 800 960
Clamping force (ton) 100 150 200 250 300 500 800 1000 1500
Stroke (mm) 250 250 250 250 250 250 250 500 900
Heating platen (mm) 400*400 460*460 503*508 600*600 600*600 700*700 1000*1000 1200*1200 1500*1500
700*700 800*800
Horse (hp) 7.5/10*1 10/15*1 10/15*1 10/15*1 10/10*2 15/15*2 20/20*2 30 30
