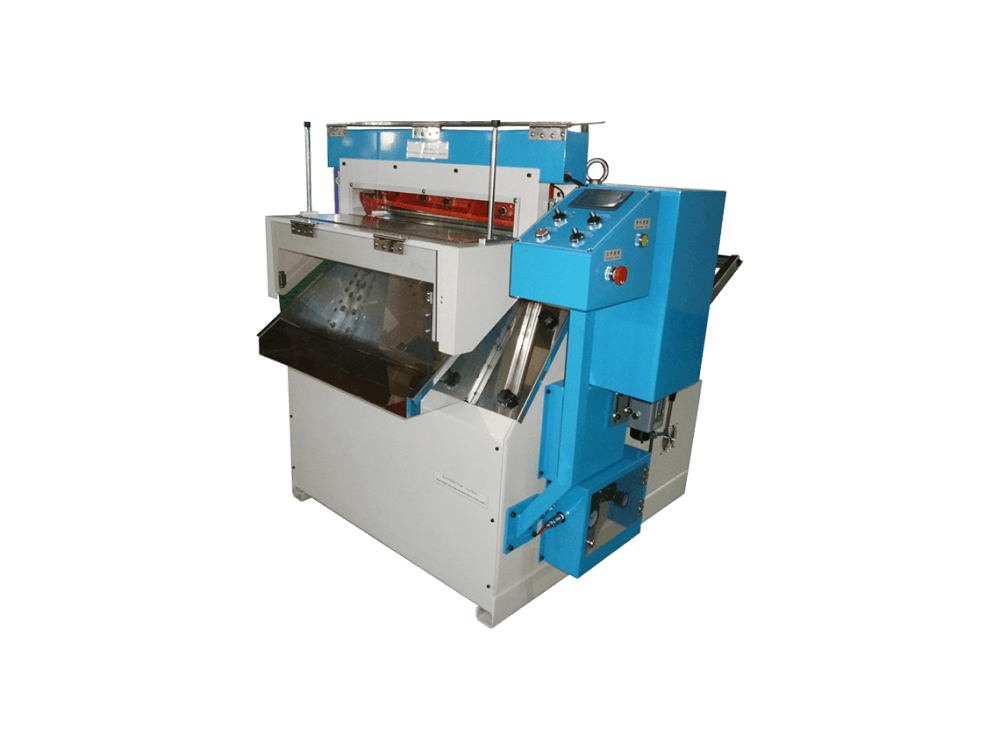

Rubber Cutting Machine

CRS/P1-4-1

Home / Our Products / Other Machine / CRS

  • Rubber Cutting Machine

Rubber Cutting Machine

  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Model CRS
Horse power
3HP
Measurement
1250mm x 1300 mm x 1250mm (LxWxH) (600mm)
1400mm x 1300 mm x 1250mm (LxWxH) (750mm)
Weight
680 kgs (600mm)
770 kgs (750mm)
Length per slicing
600mm.750mm
Width per slicing
0.1-70.00mm
0.1-300.00mm (with frequency converter)
Material of knife
HSS
Control system
Pulse modulation PLC
Counter
1-99999 LCD
Machine frame
Slab-side and bottom are made by cast iron, strong and stable.
Noise-free when slicing. The accuracy for slicing is 100%.
